Attic Roof Mount Signal Booster Amplifier Aluminum outdoor yagi antenna
| Model Number | Yagi Antenna LY-0004 |
| Type | Yagi Antenna |
| Place of Origin | Guangdong, China |
| Brand Name | Lanyi |
| Frequency Range | 470-806MHZ / OEM |
| Gain | 9dbi/ OEM |
| Bandwidth | 136MHz / OEM |
| V.S.W.R | 1.5 |
| Polarization | Vertical or horizontal |
| Nominal Impedance | 50Ω |
| Connector | N female or Customized |
| Material | Aluminum Alloy |

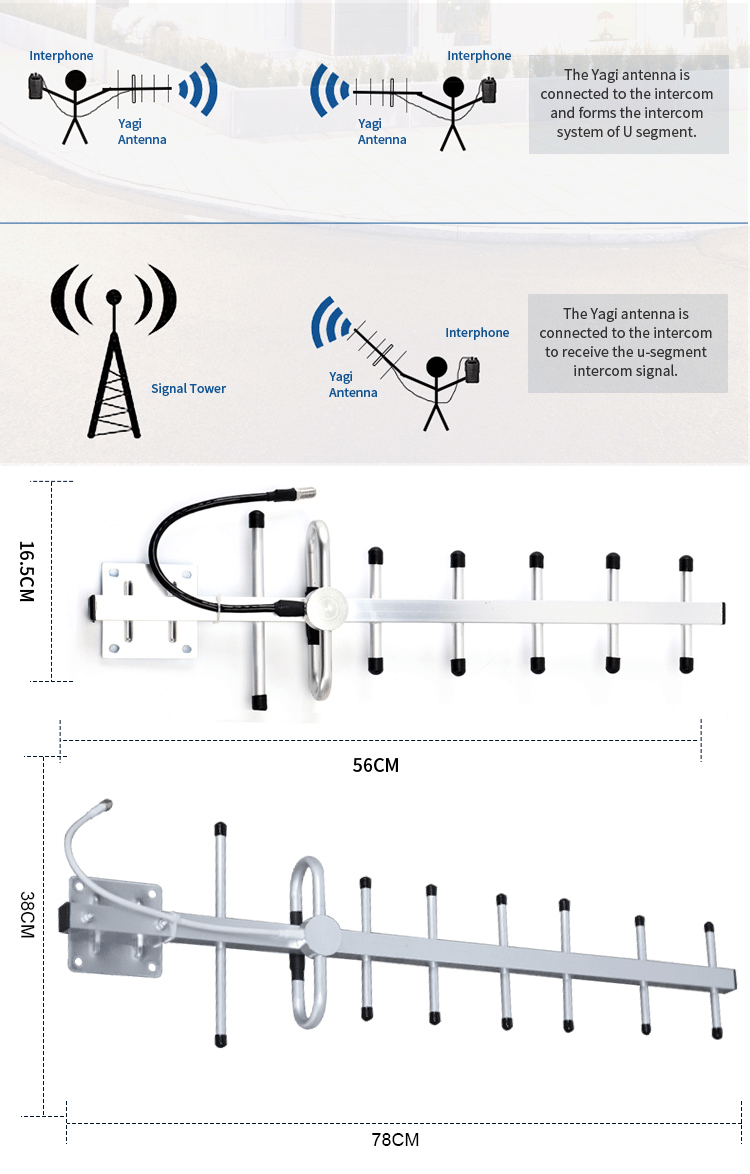

| Dimensions | 78*38cm / OEM |
| Weight | 600g / OEM |
| Supply Ability | 200000 Piece/Pieces per Month |
Yagi Directional Antenna with Carton packaging or as request.each yagi antenna has single package,20pcs in one carton.
Port:Shenzhen port
| Quantity(pieces) | 1 - 1 | 2 - 100 | 101 - 500 | >500 |
| Est. Time(days) | 3 | 10 | 15 | To be negotiated |
A: Yes, but the client have to pay for the samples charge and courier charge on his account.
A: Yes, sample is for free. We will provide you sample for free as long as you afford the express freight
A: 60 Miles from Guangzhou airport, You could visit our factory within 50 minutes.
A: Just call us, We can video call and answer phone call at any time.
| Model Number | Yagi Antenna LY-G0004-L |
| Type | Communication Antenna |
| Place of Origin | China |
| Brand Name | Lanyi |
| Frequency Range | 470-806MHZ/OEM |
| Gain | 9dBi or Customized |
| Bandwidth | 136MHz or Customized |
| Beamwidth | H: 30-°E:30-° |
| V.S.W.R | 1.5 |
| Polarization | Vertical or horizontal |
| Nominal Impedance | 50Ω |

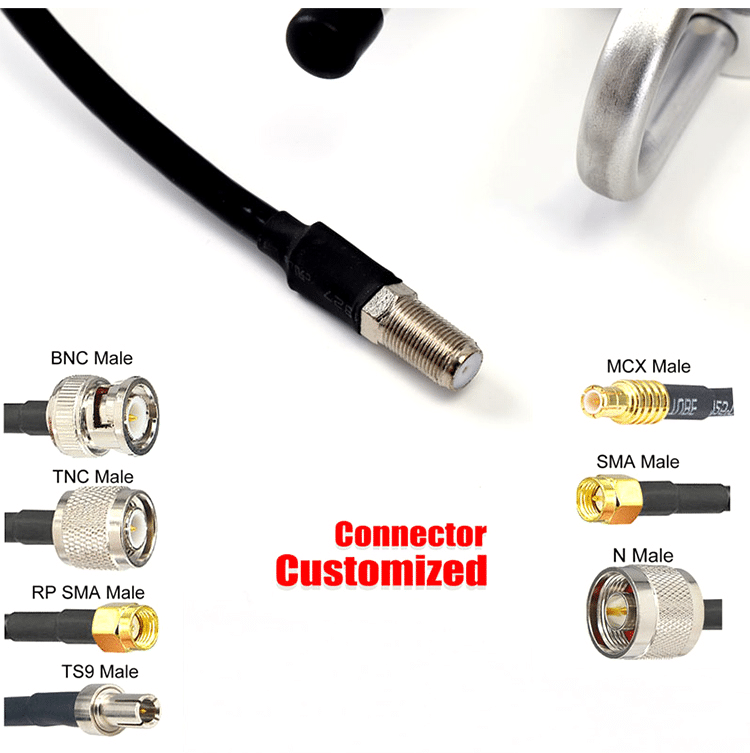

| Connector | N female or Customized |
| Material | Aluminum Alloy |
| mensions | 78*38cm |
| Size | 78*38cm or Customized |
| Weight | 760g/OEM |
| Max Power | 100W |
| F/B ratio | 9DB or /OEM |
| Element | 8 |
| Rated Wind Velocity | 60-m/s |
| Mounting Kits | U bolts |
